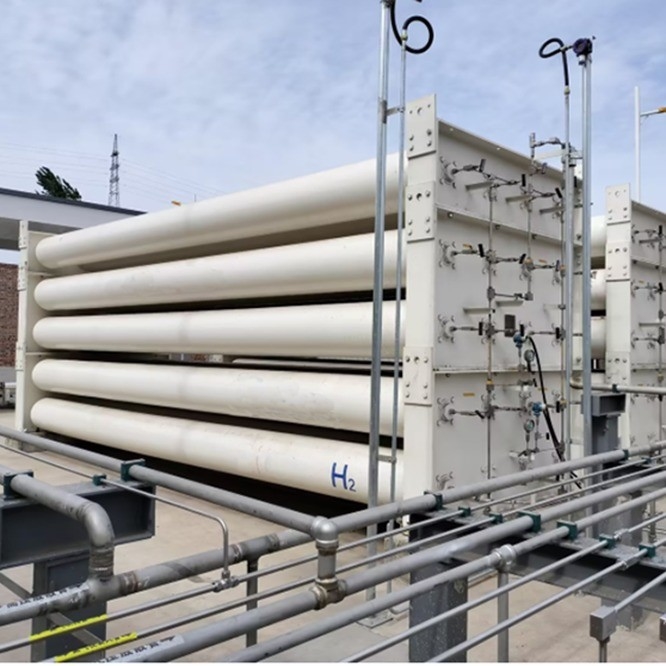

·PED,ASME High Pressure Seamless Cylinders;
·Well meet H2, He,CNG Storage;
·Working pressure from 200bar to 500bar;
·We offer customization of the Cylinder Length to meet the customer’s space requirements.
| Model | ZHPG8-559-2250-20 | ZHPG12-406-660-50 |
| No. Of cylinders | 8 | 12 |
| Working pressure (bar) | 200 | 500 |
| Design pressure (bar) | 220 | 552 |
| Tare weight (kg) | 26,000 | 40,650 |
| Filling Medium | H2 | H2 |
| Gas Volume (Nm³) | 3172 | 2947 |
| Gas Weight (kg) | 264 | 246 |
| Cylinder Material | 4130X | ASME SA372 Gr.J Cl.70 |
| Dimension (mm) | 11900*2450*1400 | 9315*2360*1440 |
| Certification | PED | PED |
Efficient use of energy to improve the human environment
|
|
