The core parts for gas dispenser of compressed hydrogen include: mass flowmeter for hydrogen, hydrogen refueling nozzle, breakaway couplin for hydrogen, etc. Among which the mass flowmeter for hydrogen is the core part for gas dispenser of compressed hydrogen and the type selection of flowmeter can directly influence the performance for gas dispenser of compressed hydrogen.

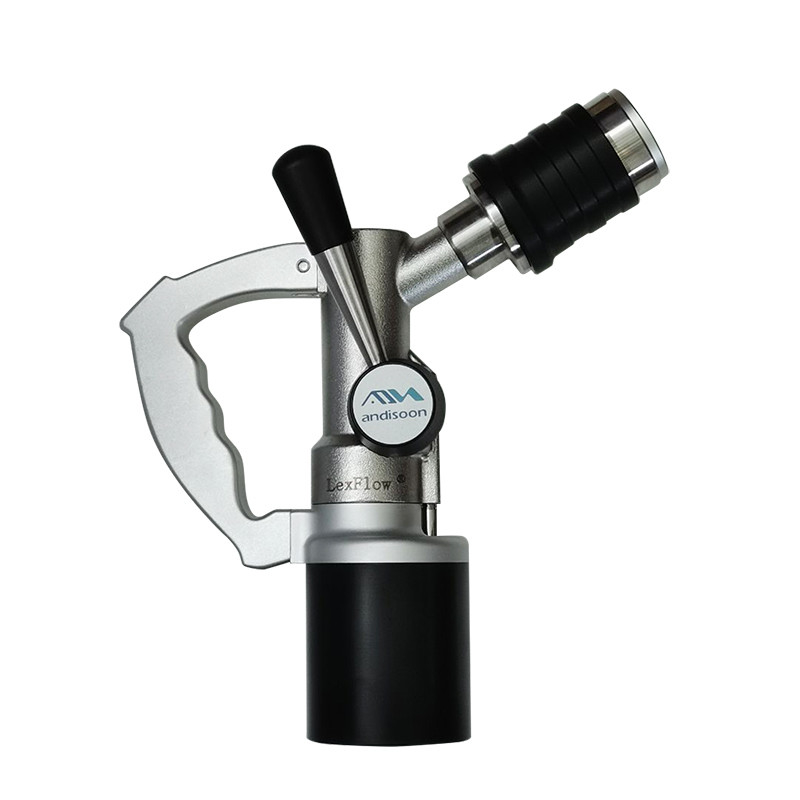

Patented seal structure is adopted for the hydrogen refueling nozzle.
● Anti-explosion grade: IIC.
● It is made of high-strength anti-hydrogen-embrittlement stainless steel.
|
Mode |
T631-B |
T633-B |
T635 |
|
Working medium |
H2, N2 |
||
|
Ambient Temp. |
-40℃～＋60℃ |
||
|
Rated working pressure |
35MPa |
70MPa |
|
|
Nominal diameter |
DN8 |
DN12 |
DN4 |
|
Air inlet size |
9/16"-18 UNF |
7/8"-14 UNF |
9/16"-18 UNF |
|
Air outlet size |
7/16"-20 UNF |
9/16"-18 UNF |
- |
| Communication line interface |
- |
- |
Compatible with SAE J2799/ISO 8583 and other protocols |
|
Main materials |
316L |
316L |
316L Stainless Steel |
|
Product weight |
4.2kg |
4.9kg |
4.3kg |
Hydrogen Dispenser Application
Efficient use of energy to improve the human environment
|
|
