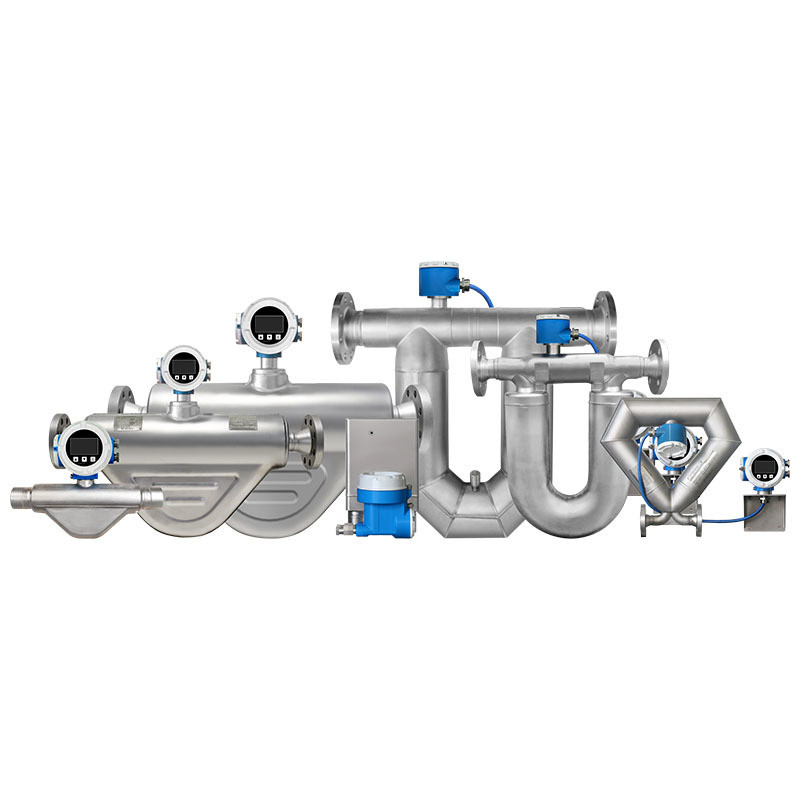

The flowmeter is an intelligent meter with digital signal processing as the core, thus a dozen of parameters can be outputted for user according to the three fundamental quantities above. Featured with flexible configuration, strong function and high cost perfomance, the Coriolis Mass Flowmeter is a new generation of high-precision flow meter. Coriolis Mass Flowmeter is a new generation of high-precision flow meter, which is flexible configuration, powerful function and high cost perfomance.
It passed ATEX, CCS, IECEx and PESO certificates.
● It can be used to directly measure the mass flow rate of fluid in pipeline without the influence of temperature, pressure and flow velocity.
● High accuracy and excellent repeatability. Wide range ratio (100:1).
● Cryogenic and high pressure calibration is employed for high –pressure flowmeter. Compact structure and strong installation interchangeability. Small pressure loss and wide range of working conditions.
● The hydrogen mass flowmeter has excellent small flow measurement performance, which can fully meet the working conditions of the hydrogen dispensers. There are currently two types of hydrogen mass flowmeters: 35MPa and 70MPa (rated operating pressure). Due to the high safety requirements of hydrogen flowmeter, we have obtained the IIC explosion-proof certificate.
|
Model |
AMF006A |
AMF008A |
AMF025A |
AMF050A |
AMF080A |
|
Measuring medium |
Liquid, Gas |
||||
|
Medium temp. range |
-40℃~+60℃ |
-196℃～＋70℃ |
|||
|
Nominal diameter |
DN6 |
DN8 |
DN25 |
DN50 |
DN80 |
|
Max. Flow-rate |
5kg/min |
25 kg/min |
80 kg/min |
50 t/h |
108 t/h |
|
Working Pressure range(Customizable) |
≤43.8MPa / ≤100MPa |
≤4 MPa |
≤4 MPa |
≤4 MPa |
≤4 MPa |
|
Connection Mode (Customizable) |
UNF 13/16-16, Internal thread |
HG/T20592 Flange DN15 PN40(RF) |
HG/T20592 Flange DN25 PN40 (RF) |
HG/T20592 Flange DN50 PN40 (RF) |
HG/T20592 Flange DN80 PN40(RF) |
|
Safety and Protection |
Ex d ib IIC T6 Gb IP67 ATEX |
Ex d ib IIC T6 Gb IP67 CCS ATEX |
Ex d ib IIC T6 Gb IP67 CCS ATEX |
Ex d ib IIC T6 Gb IP67 CCS ATEX |
Ex d ib IIC T6 Gb IP67 CCS ATEX |
|
Model |
AMF015S |
AMF020S |
AMF040S |
AMF050S |
AMF080S |
|
Measuring medium |
Liquid, Gas
|
||||
|
Medium temp.range |
-40℃～+60℃ |
||||
|
Nominal diameter |
DN15 |
DN20 |
DN40 |
DN50 |
DN80 |
|
Max.Flow-rate |
30kg/min |
70kg/min |
30 t/h |
50 t/h |
108 t/h |
|
Working Pressure range (Customizanle) |
≤25MPa |
≤25MPa |
≤4 MPa |
≤4 MPa |
≤4 MPa |
|
Connection Mode (Customizanle) |
(Internal thread) |
G1(Internal thread) |
HG/T20592 Flange DN40 PN40 (RF) |
HG/T20592 Flange DN50 PN40 (RF) |
HG/T20592 Flange DN80 PN40 (RF) |
|
Safety and Protection |
Ex d ib IIC T6 Gb IP67 |
||||
CNG Dispenser Application, LNG Dispenser Application, LNG Liquefaction Plant Applic, Hydrogen Dispenser Applicatio, Terminal applica.
Efficient use of energy to improve the human environment
|
|
