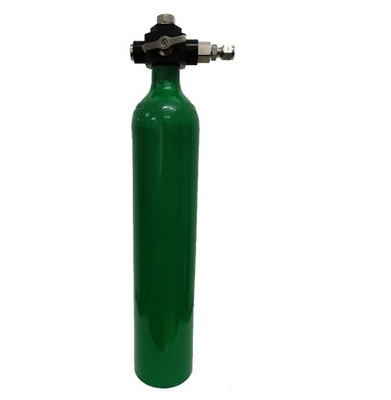

Use high-performance hydrogen storage alloy as the hydrogen storage medium, this product can be used to suck and release hydrogen in a reversible manner at a certain temperature and pressure. It can be widely used in electric vehicles, mopeds, tricycles and other equipment driven by low-power hydrogen fuel cells, and can also be used as a supporting hydrogen source for portable instruments such as gas chromatographs, hydrogen atomic clocks and gas analyzers.
| Main Index Parameters | ||||
| Inner volume of tank | 0.5L | 0.7L | 1L | 2L |
| Tank size (mm) | Φ60*320 | Φ75*350 | Φ75*400 | Φ108*410 |
| Tank material | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Operating temperature (°C) | 5-50 | 5-50 | 5-50 | 5-50 |
| Hydrogen storage pressure (MPa) | ≤5 | ≤5 | ≤5 | ≤5 |
| Hydrogen filling time (25°C) (min) | ≤20 | ≤20 | ≤20 | ≤20 |
| Total mass of hydrogen storage tank (kg) | ~3.3 | ~4.3 | ~5 | ~9 |
| Hydrogen storage capacity (g) | ≥25 | ≥40 | ≥55 | ≥110 |
1. Small size and easy to carry;
2. High hydrogen storage density and high hydrogen release purity;
3. Low energy consumption;
4. No leakage and good safety.
Efficient use of energy to improve the human environment
|
|

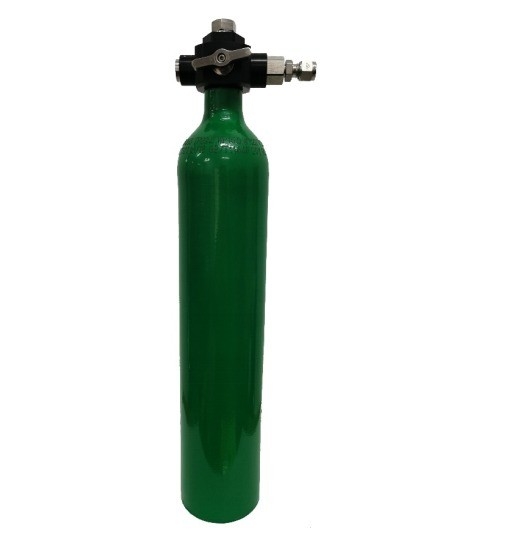

Use high-performance hydrogen storage alloy as the hydrogen storage medium, this product can be used to suck and release hydrogen in a reversible manner at a certain temperature and pressure. It can be widely used in electric vehicles, mopeds, tricycles and other equipment driven by low-power hydrogen fuel cells, and can also be used as a supporting hydrogen source for portable instruments such as gas chromatographs, hydrogen atomic clocks and gas analyzers.
