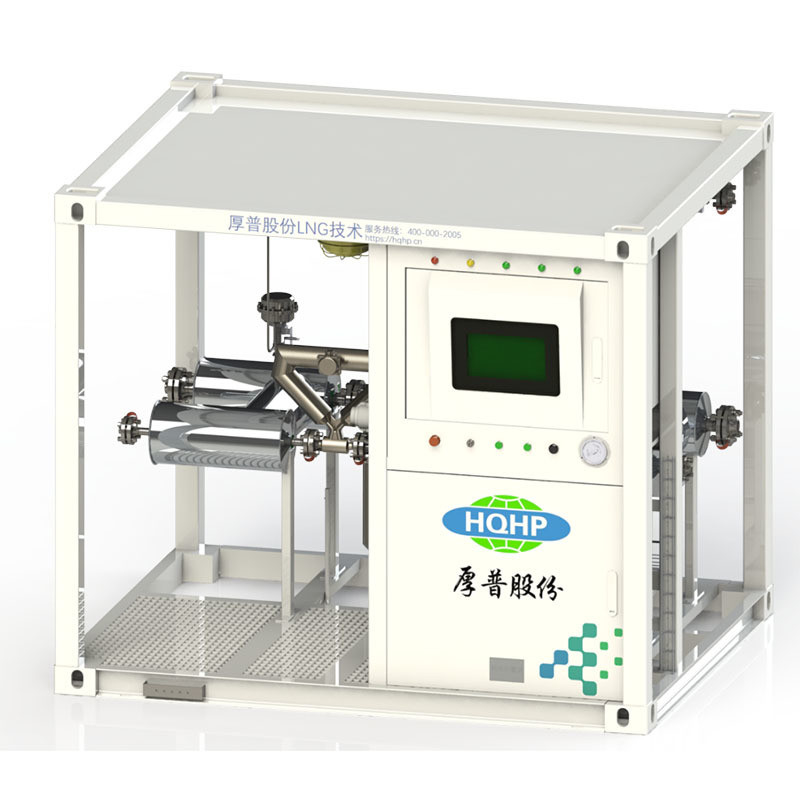

When working, the liquid inlet end of the equipment is connected to the LNG filling skid, and the liquid outlet end is connected to the filling vessel. At the same time, according to customer needs, it is possible to choose to measure the return gas of the ship to enhance the fairness of trade.
Highly integrated and integrated design, easy to operate.
● Using a high-precision mass flow meter, the measurement accuracy is high.
● Both gas and liquid phases can be measured, and the trade measurement results are more accurate.
● The electronic control system is designed with intrinsic safety and explosion-proof, which is safe and reliable.
● Adopt high-brightness backlight LCD digital liquid crystal display, which can display the quality (volume) amount and unit price in the filling machine.
● It has the functions of pre-cooling intelligent judgment and breaking protection.
● Provide non-quantitative filling and preset quantitative filling.
● Data protection, extended data display and repeated display when power is off.
● Perfect data storage, management and query functions.
| Product number | H PQM series | Electric system | DC24V |
| Product Size | 2500×2000×2100(mm) | Trouble free working time | ≥5000h |
| product weight | 2500kg | Liquid flow meter | CMF300 DN80/AMF300 DN80 |
| Applicable media | LNG/liquid nitrogen | Gas flow meter | CMF200 DN50/AMF200 DN50 |
| Design pressure | 1.6MPa | System measurement accuracy | ±1% |
| Work pressure | 1.2MPa | Unit of measurement | Kg |
| Set tempreture | -196～55 ℃ | Minimum division value of reading | 0.01kg |
| Measurement accuracy | ±0.1% | Single measurement range | 0～9999.99kg |
| Flow rate | 7m/s | Cumulative measurement range | 99999999.99kg |
LNG filling station is mostly used in shore-based filling system.
If this type of equipment is required for the LNG filling station on the water, the products certified by the classification society can be customized.
Efficient use of energy to improve the human environment
|
|
