The maximum bunkering capacity is 65m³/h. It is mainly used in on-water LNG bunkering stations. With PLC control cabinet, power drag cabinet and LNG filling control cabinet, functions such as bunkering, unloading and storage can be realized.
Modular design, compact structure, small footprint, easy installation and use.
● Approved by CCS.
● The process system and electrical system are arranged in partitions, which is convenient for maintenance.
● Fully enclosed design, using forced ventilation, reducing the dangerous area, high safety.
● Can be adapted to tank types with diameters of Φ3500～Φ4700mm, with strong versatility.
● Can be customized according to user needs.
| Model | HPQF sery | Design temperature | -196～55℃ |
| Dimension(L×W×H) | 8500×2500×3000 (mm) (Exclusive of tank) | Total power | ≤80KW |
| Weight | 9000 kg | Power | AC380V, AC220V, DC24V |
| Bunkering capacity | ≤65m³/h | Noise | ≤55dB |
| Medium | LNG/LN2 | Trouble free working time | ≥5000h |
| Design pressure | 1.6MPa | Measurement error | ≤1.0% |
| Working pressure | ≤1.2MPa | Ventilation capacity | 30 times/H |
| *Note: It needs to be equipped with a suitable fan to meet the ventilation capacity. | |||

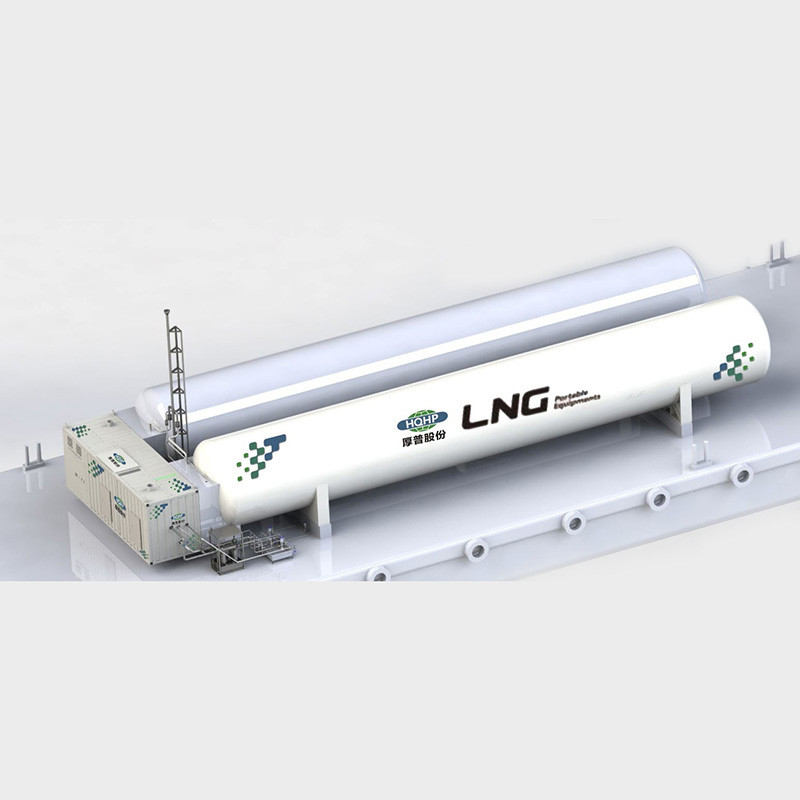

The dual-tank marine bunkering skid is suitable for large-scale floating LNG bunkering stations with unlimited installation space.
Efficient use of energy to improve the human environment
|
|
