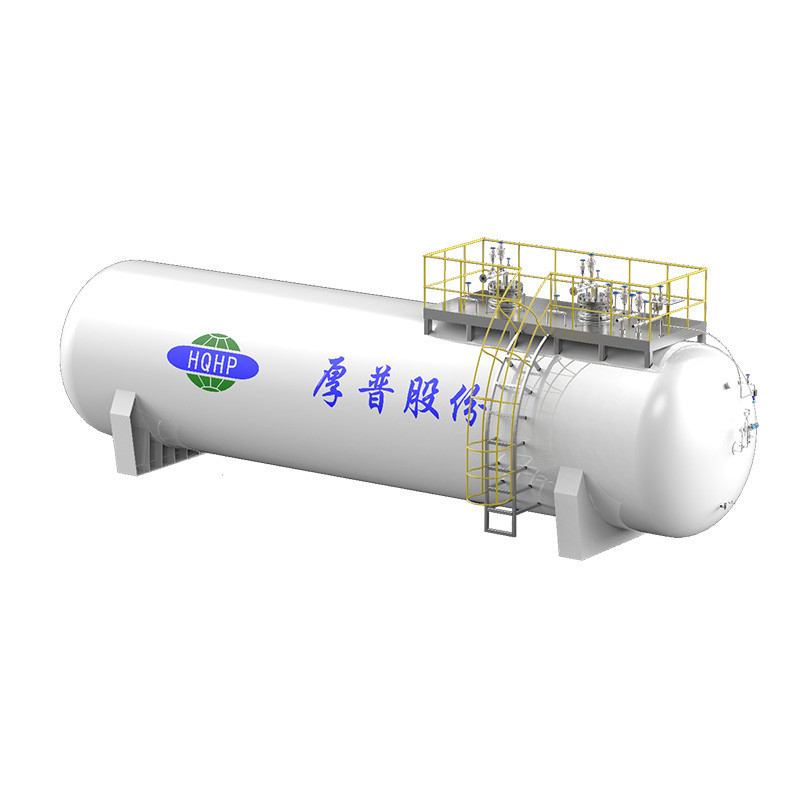

The built-in pump filling device is a set of integrated equipment designed according to CCS specifications, with a low-temperature submersible pump designed in the LNG storage tank, integrating storage and bunkering as a whole, with PLC control cabinet, power cabinet, the LNG bunkering control cabinet and LNG unloading skid can realize the functions of LNG trailer unloading, liquid storage, bunkering, etc, and have the characteristics of compact structure, short bunkering time and convenient maintenance.
Integrate storage and bunkering functions.
● Approved by CCS.
● The amount of BOG generated is less, and the operating loss is lower.
● Optimize the bunkering process, which can be filled in real time.
● The equipment is highly integrated and the installation space is small.
● Adopting special structure, it is convenient to overhaul the pump and bottom valve.
● Can be customized according to user needs.
| Model |
HPQF series |
||||
| Dimension(L×W×H) | 1300×3000×5000 (mm) | 1400×3900×5300 (mm) | 1500×5700×6700 (mm) | 2400×5200×6400 (mm) | 2200×5300×7100 (mm) |
| Geometric capacity | 60m³ | 100 m³ | 200m³ | 250m³ | 300m³ |
| Flowrate | 60 m³/h | ||||
| Head | 220m | ||||
| Tank working pressure | ≤1.0MPa | ||||
This product is suitable for on-water LNG bunkering stations built on barge or LNG fuel-powered ships with limited installation space.
